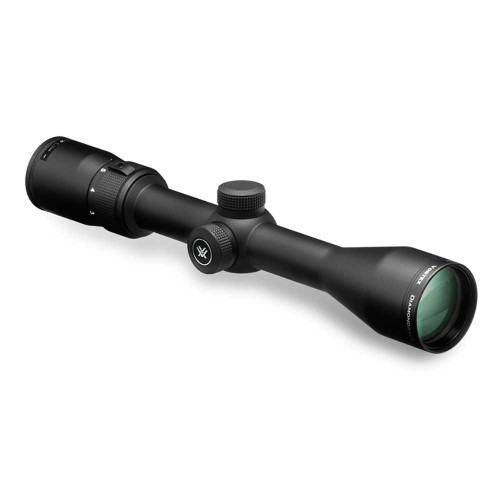

Vortex Diamondback 3-9x40 AO with V-Plex MOA Reticle

Vortex Diamondback 3-9x40 Riflescope

Diamondback riflescopes are loaded with features. First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more, but doesn't.

Optical Features:

• Fully Multi-Coated - Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
• Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Construction Features:

• Tube Size - 1-inch diameter.
• Single-Piece Tube - maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
• Aircraft-Grade Aluminum - constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
• Waterproof - O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
• Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
• Shockproof - rugged construction withstands recoil and impact.
• Hard Anodized Finish - highly durable low-glare matte finish helps camouflage the shooter’s position.
• Precision-Glide Erector System - Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
• Capped Reset Turrets - Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret.

Specifications:

• Magnification: 3-9
• Objective Lens: 40 mm
• Eye Relief: 3.3"
• Field of View: 44.6-14.8 feet/100 yards
• Tube Size: 1"
• Turret Style: Capped
• Adjustment Graduation: 1/4 MOA
• Travel Per Rotation: 15 MOA
• Max Elevation Adjustment: 70 MOA
• Max Windage Adjustment: 70 MOA
• Parallax Setting: 100 yards
• Reticle: V-Plex
• Length: 11.61"
• Weight: 14.4 oz.
• Part #: DBK-M-01P

Included

• Removable lens cover
• Lens cloth

Warranty

Every Vortex product comes with a VIP Unlimited, Unconditional, Lifetime Warranty.
